How a used shoe becomes a surface

Development programCredentials & documents

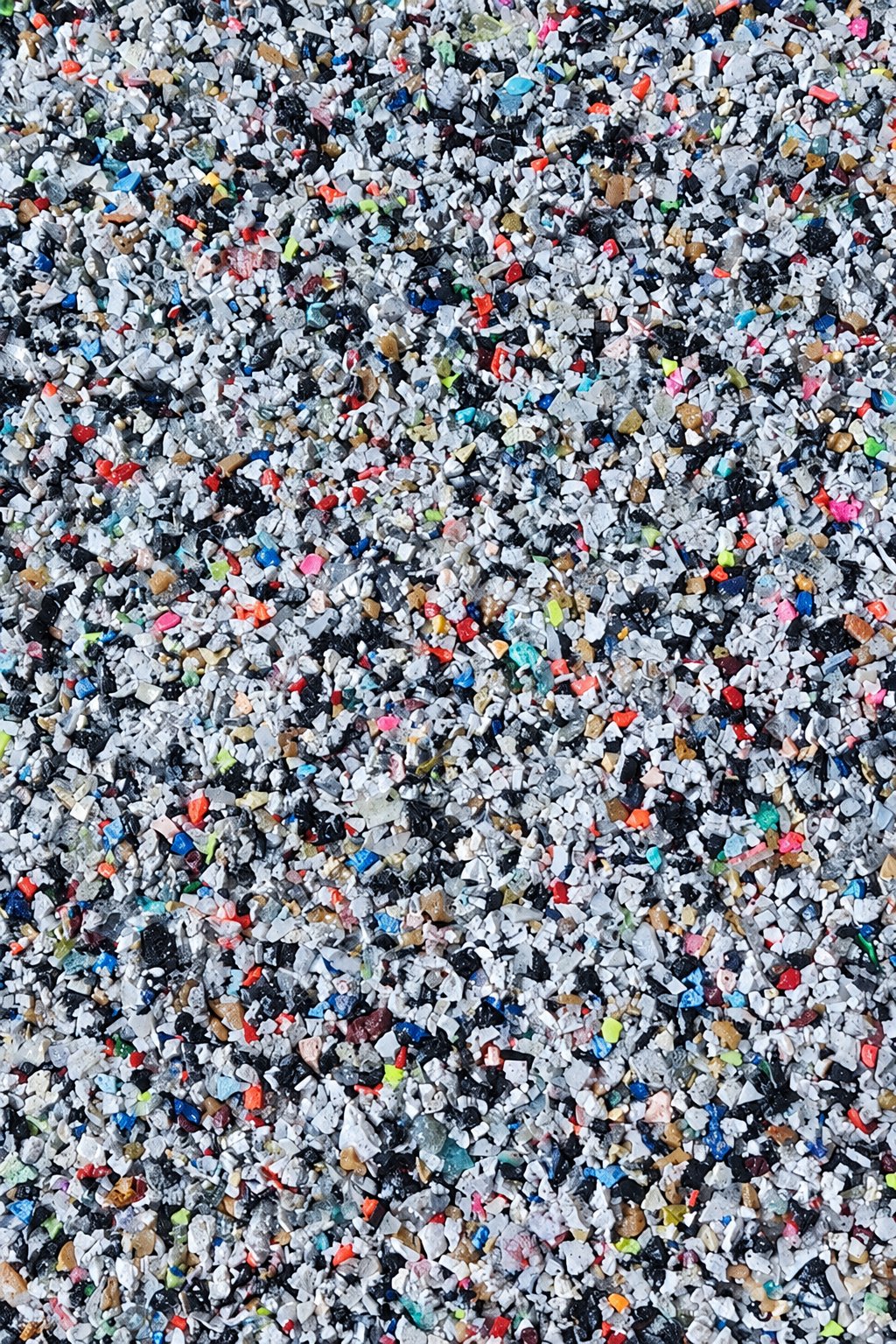

  • Recycled shoe rubber granules: grey, white and black chips with small coloured flecks.RubberFrom the outsole

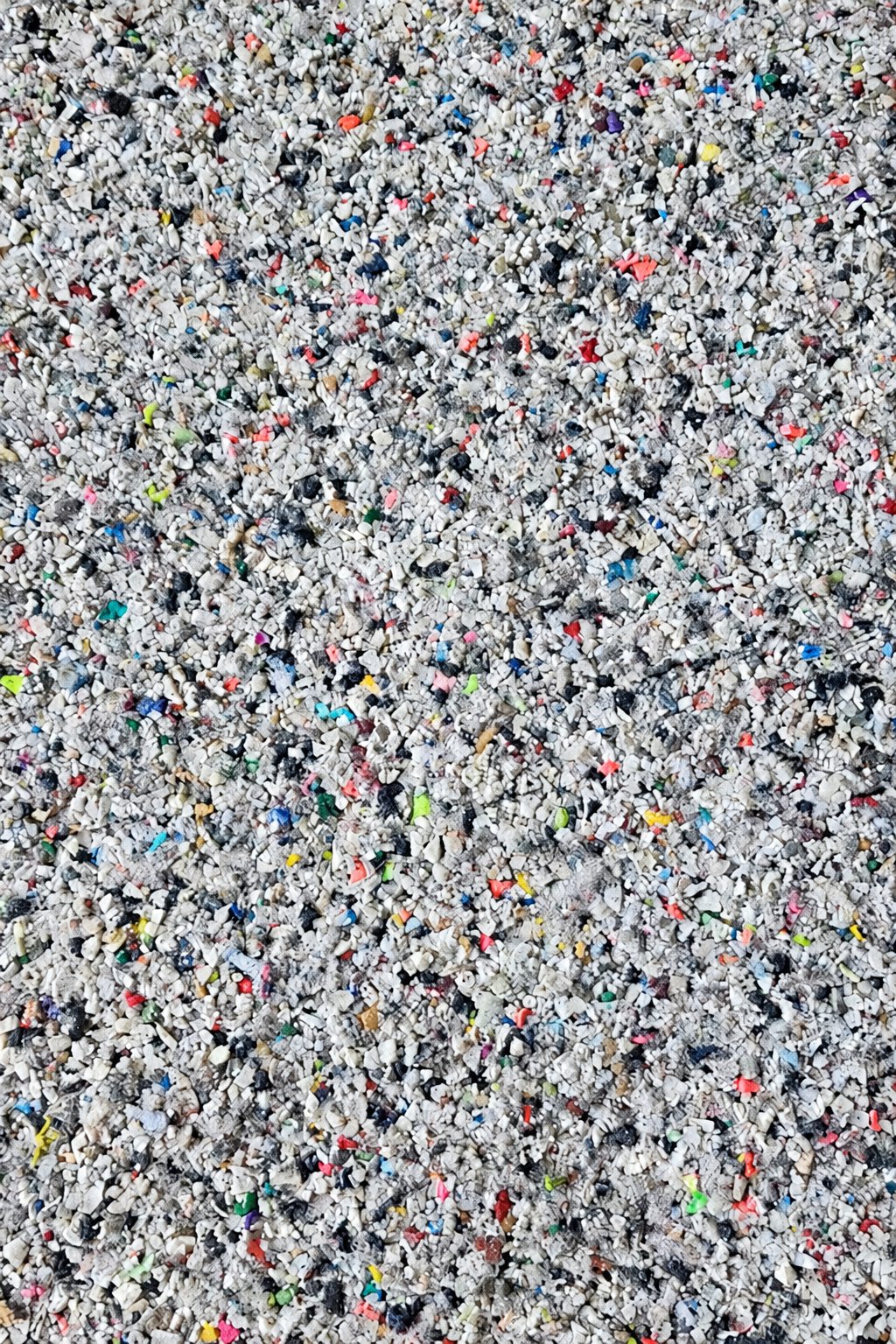

  • Recycled shoe EVA granules: light grey and white flakes with small coloured flecks.EVAFrom the midsole
  • Recycled EVA and rubber granules mixed together.Rubber + EVAMade from both

Follow the rubber and EVA from the shoe to the court

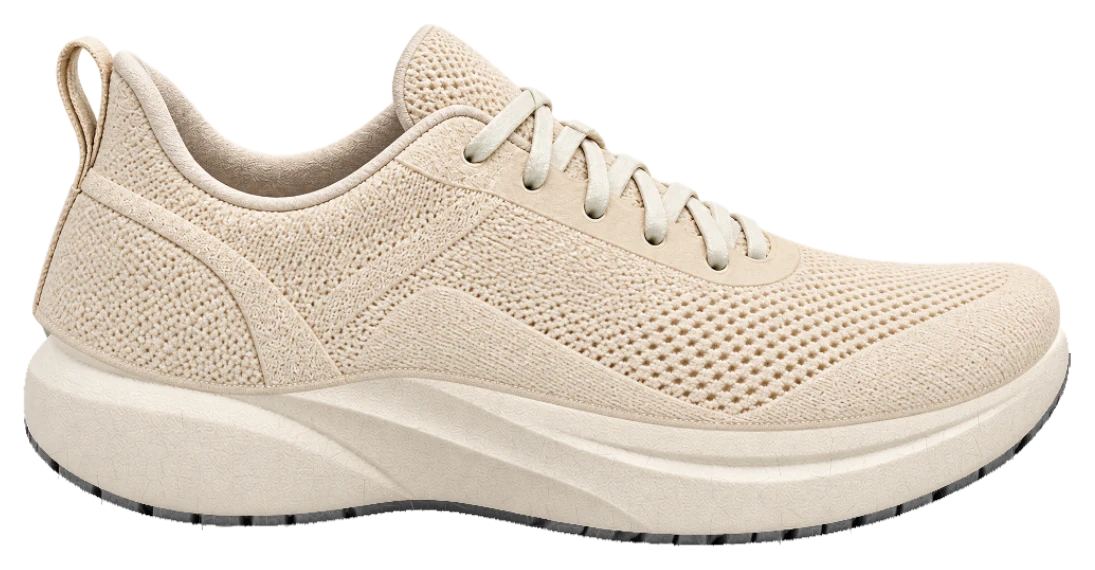

Illustration of an assembled sports shoe, the starting point of the sequence.

The animation could not be loaded. The steps are listed below.

  1. Footwear combines a textile upper, an EVA midsole and a rubber outsole.

  2. Rubber outsoles and EVA midsoles are the parts recovered for surface use.

  3. Recovered material is prepared as granules.

  4. Granules and binder are formulated for the intended use.

  5. A lower layer of recovered rubber and EVA gives elastic support.

    In development

  6. Separate layers for elastic support, heat and wear.

    In development

  7. The layers are installed on site as one continuous surface.

  8. A track and field, ready for use.

Built this way in Seoul

In place · Korea

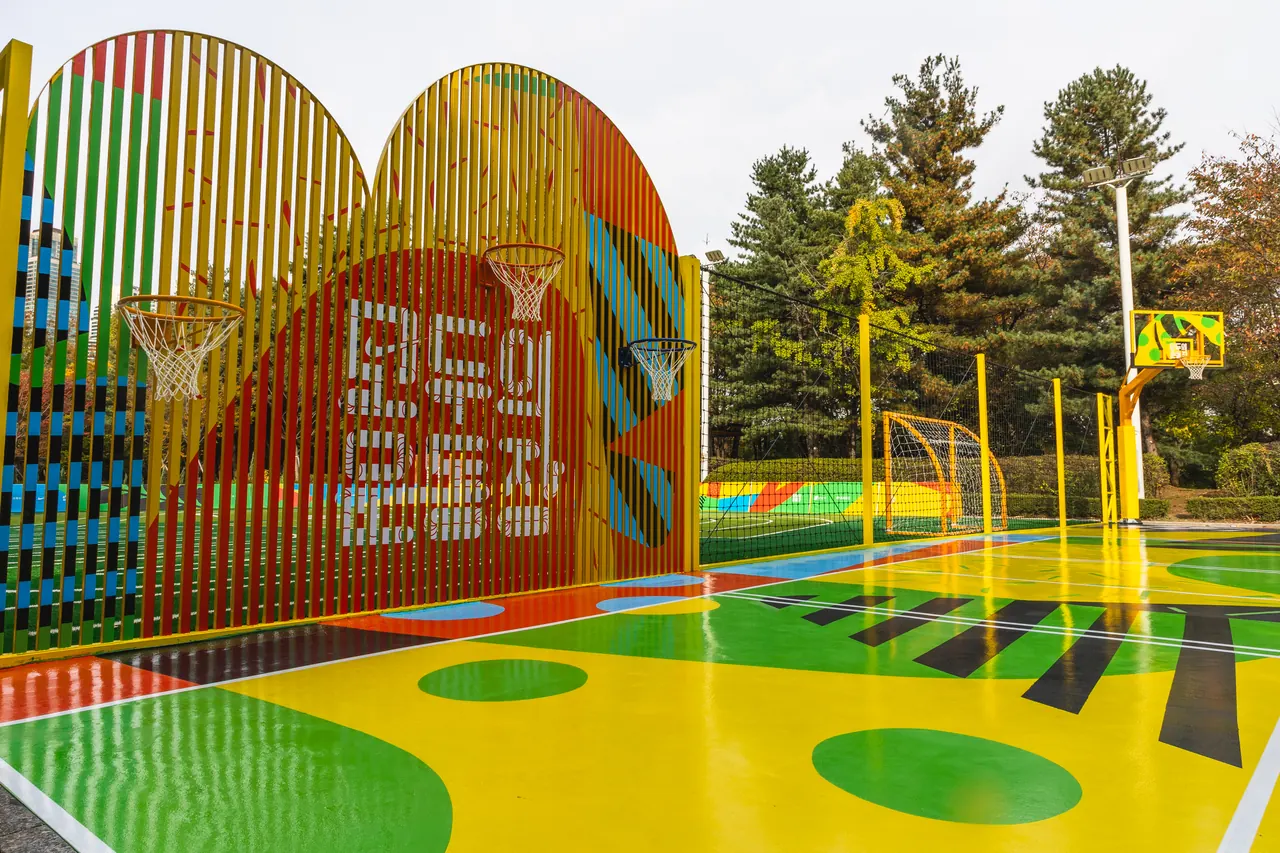

The glossy coloured surface at Modoo Gangnam at ground level, with line markings and the Modoo wall.
Modoo Gangnam, Seoul, 2024

Rubber granules from our Cheonan factory

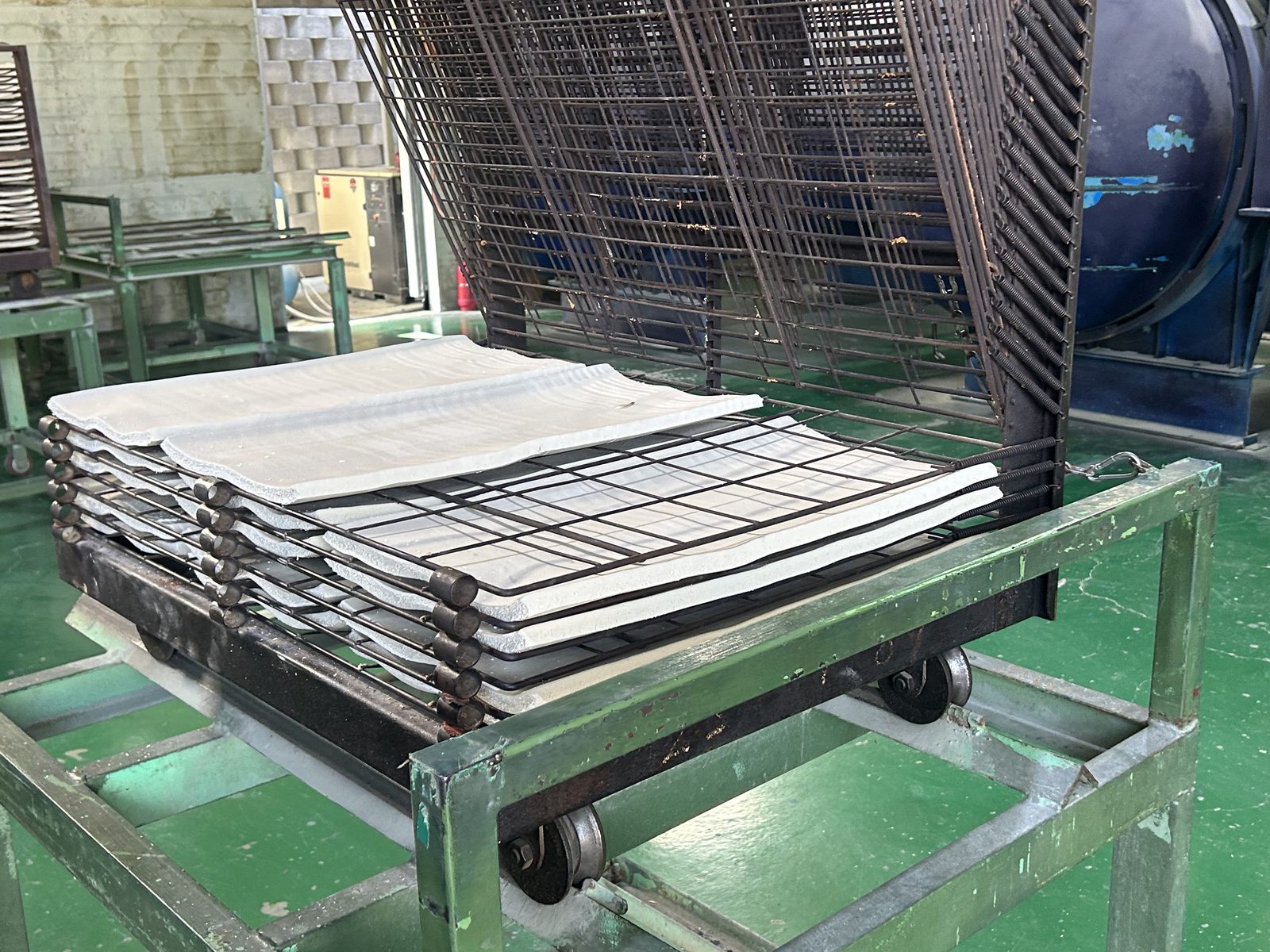

  1. Moulded rubber sheets stacked on a rack beside a curing vessel.Press into sheets

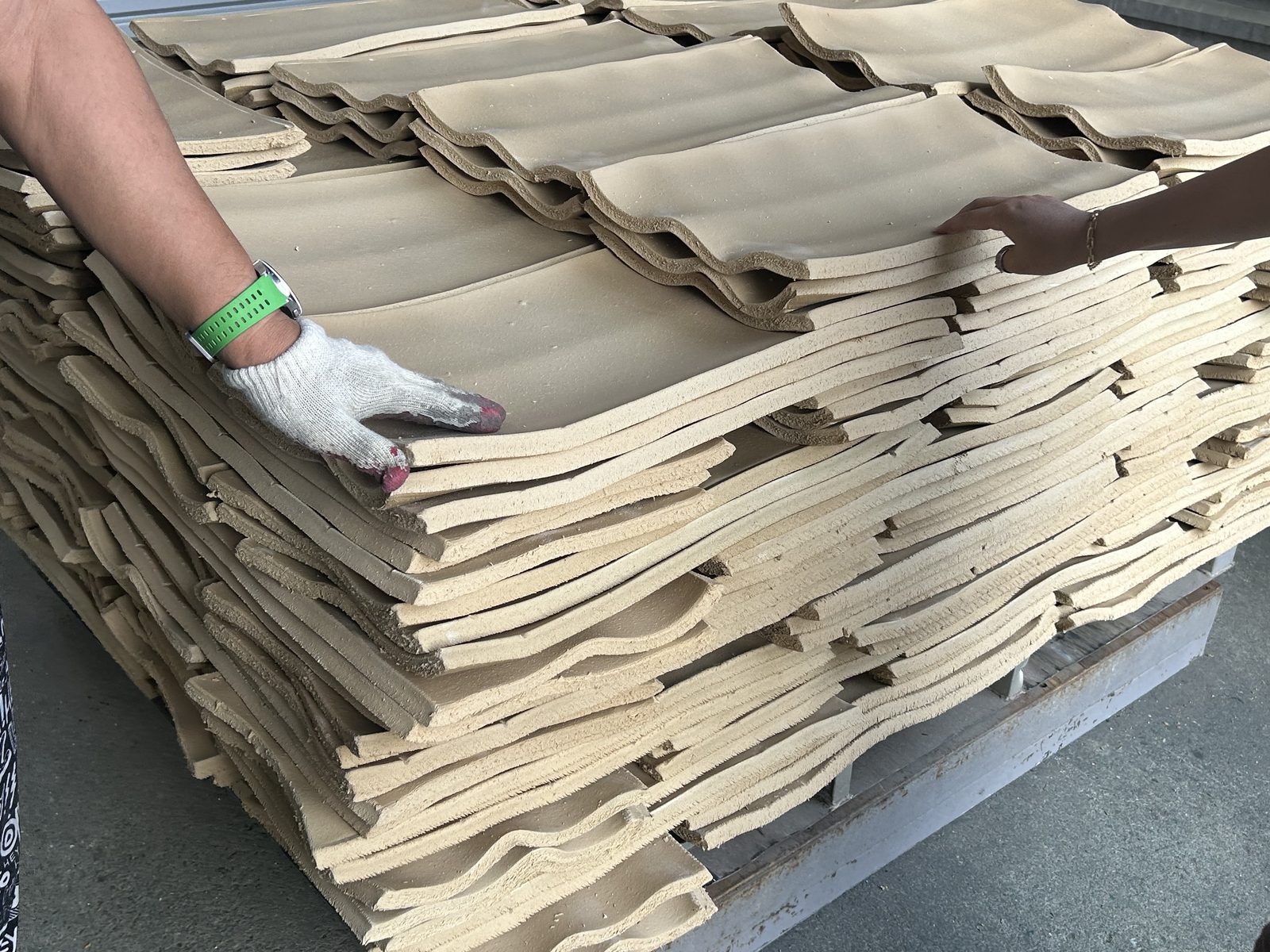

  2. A gloved hand lifting a cured rubber sheet from a stack.Cure for 3–5 days

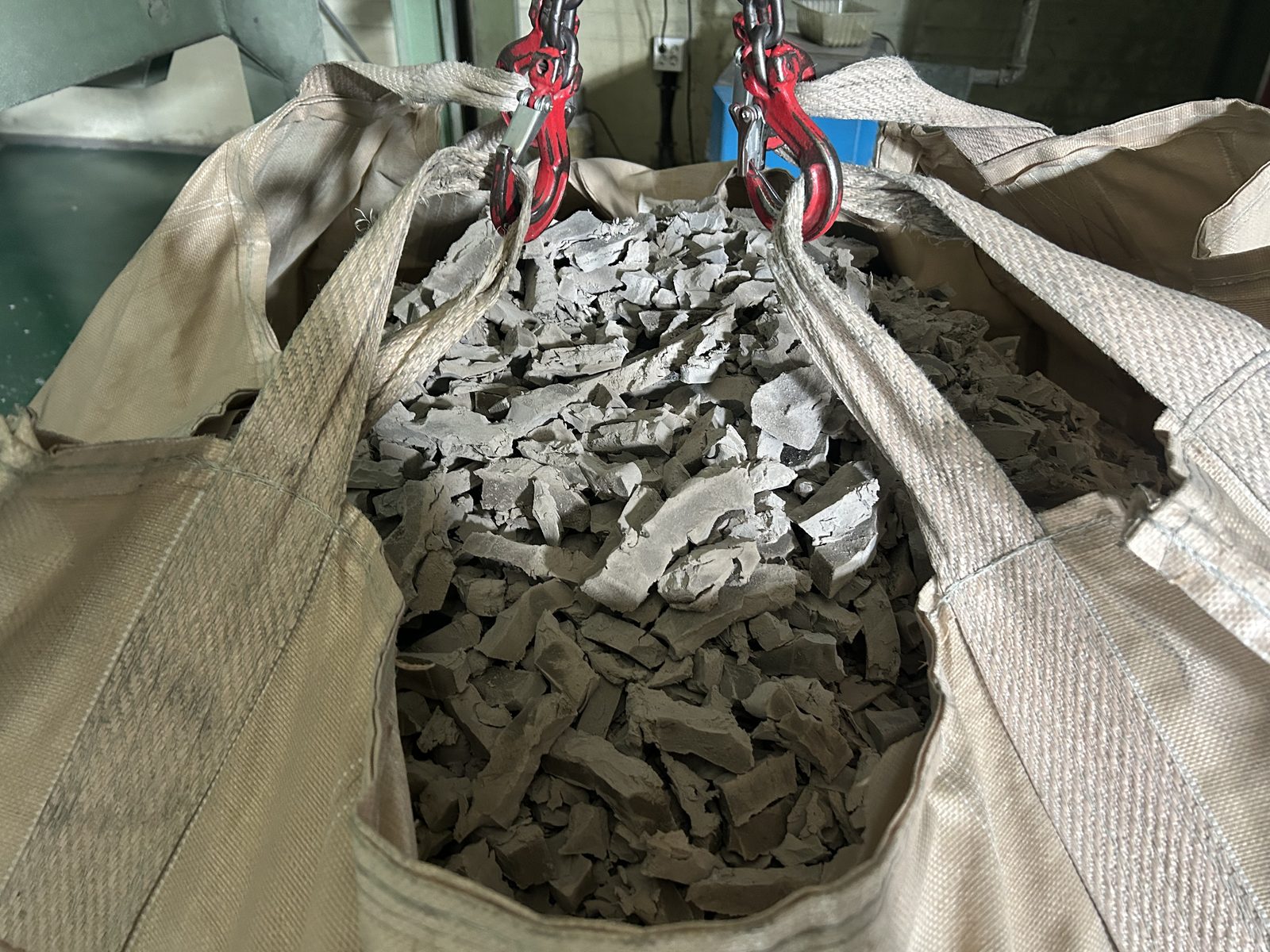

  3. Crushed rubber pieces in a bulk bag.First crushing

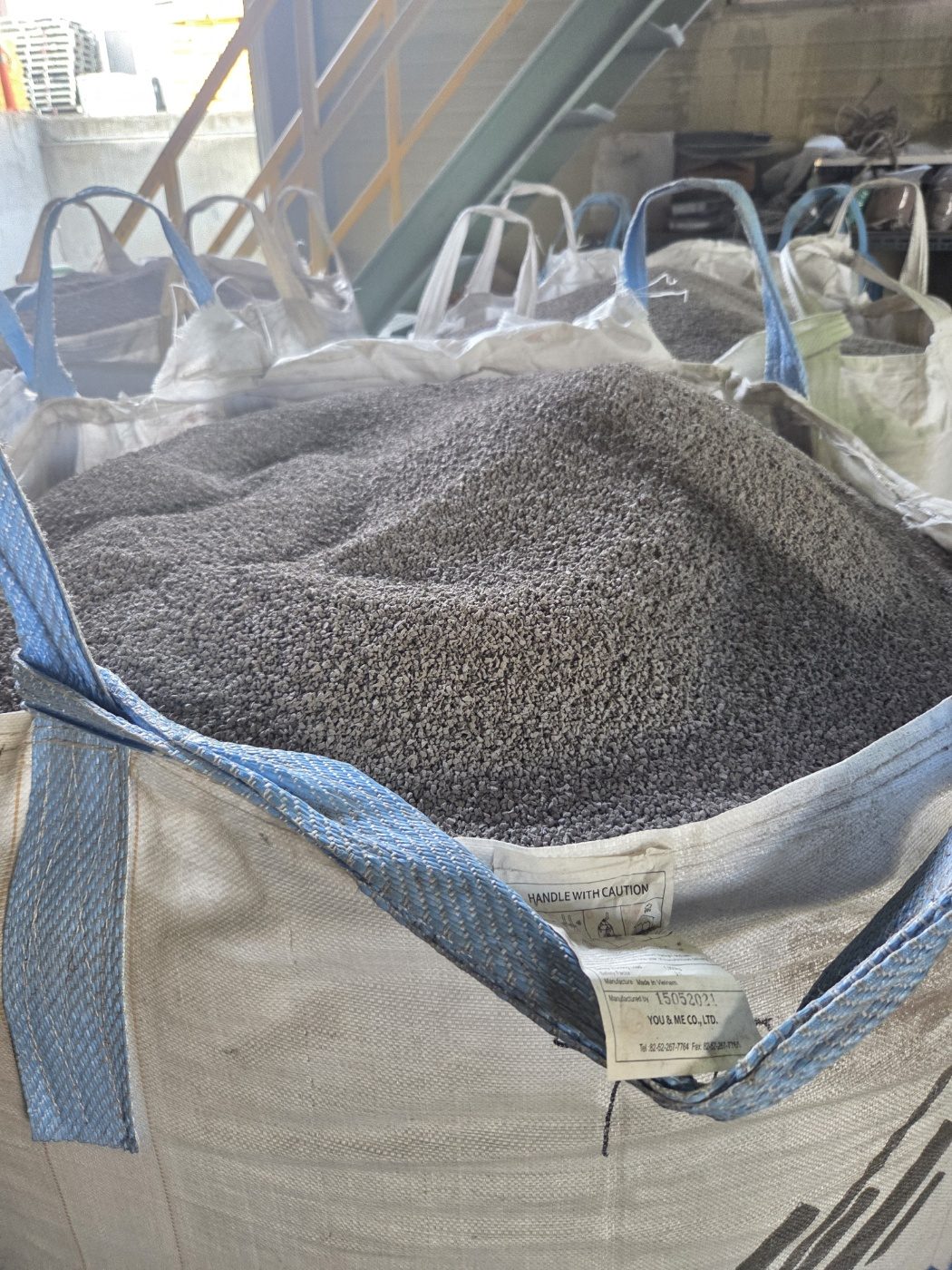

  4. A bulk bag full of fine rubber granules.Grind to 2–4 or 4–8 mm

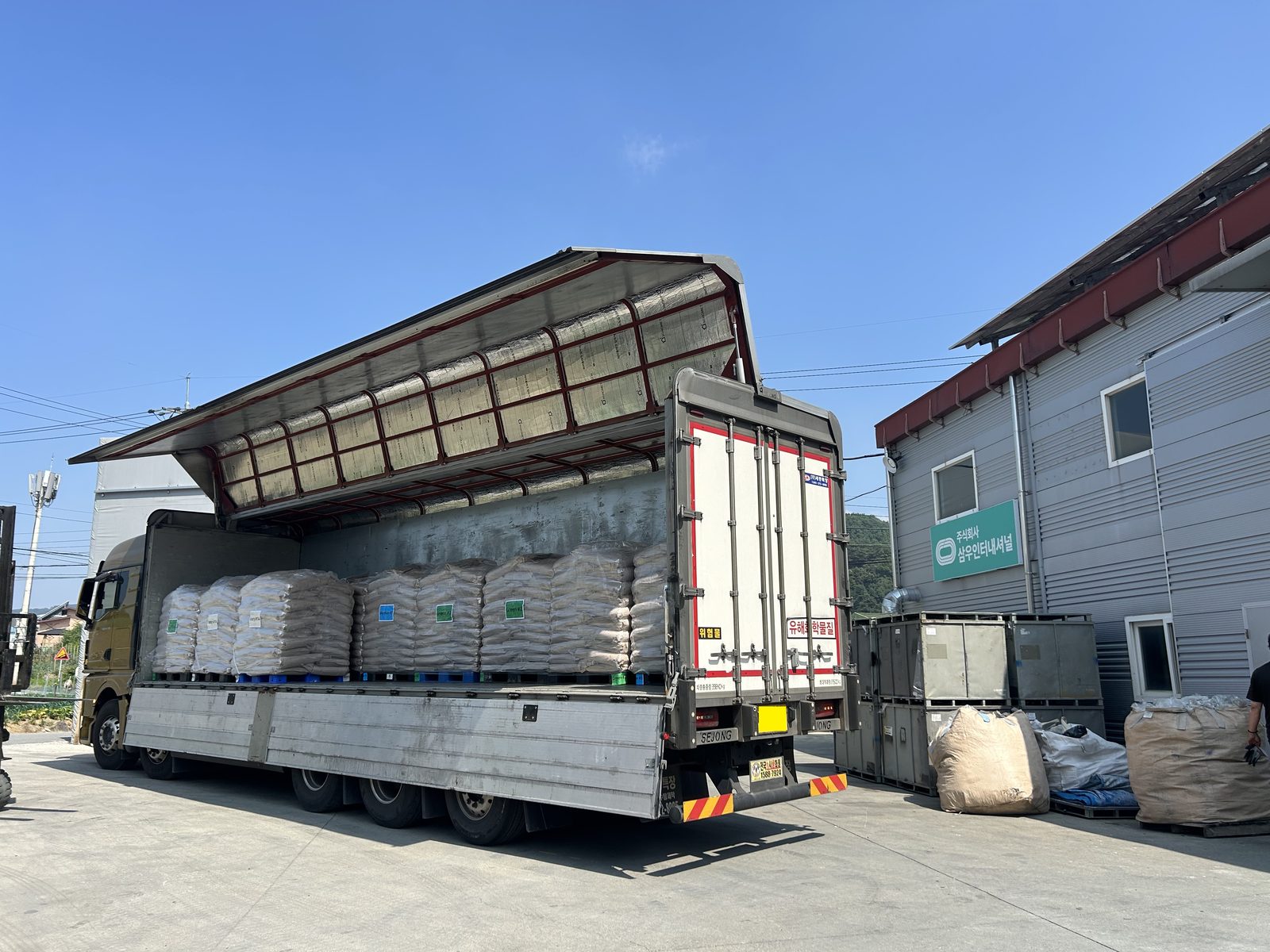

  5. A truck loaded with bagged rubber granules at the factory.Bag in 25 kg and ship

What we are developing for Canada

In development · Canada

Lower-carbon, climate-ready surfaces with recorded quality.

Development program
Three layers of a surface: an elastic base, a middle layer and a wear-resistant top.
